Speciality Hoses
speciality hoses
Speciality Hoses are highly flexible premium chemical hoses with specific properties, for a variety of requirements.
Sizes below are standard, other sizes available on request.
LMD | LMS (Ω / T).
‘Blue Band’ hose for solvents, with smooth, seamless lining of blue NBR special rubber compound. For most solvents, paints, water lacquer, petroleum products, alcohols, aldehydes, esters and ketones. In short term operation also suitable for aromatic and chlorinated hydrocarbons.
Conforms to EN 12115. Full electrostatic safety. Temperature range – 20 °C up to +80 °C depending on medium.
LMD (without helix):
Pressure hose PN 16.
Available in sizes 09mm · 13mm · 19mm · 25mm
LMS (with helix):
Suction and pressure hose PN 16.
Sizes 25mm · 32mm · 38mm · 50mm · 63mm · 75mm · 100mm · 150mm
CHD | CHS (Ω / T).
‘Lilac Band’ – the classic rubber chemical hose, with smooth, seamless EPDM lining. Suitable for more than 75% of all industrial chemicals, also for hot water, cooling water and hot air (not oily).
Conforms to EN 12115. Full electrostatic safety. Temperature range – 40 °C up to +100 °C depending on medium.
CHD (without helix):
Pressure hose for discharge and barrel pumps in wet and dry hose systems. Also suitable as reel hose.
Sizes 13mm · 19mm · 25mm · 32mm · 38mm · 50mm
CHS (with helix):
Suction and discharge hose for IBC and barrels, containers, rail tankers, tankers and fixed installations.
Sizes 25mm · 32mm · 38mm · 50mm · 63mm · 75mm · 100mm · 150mm
AMX (Ω)
Ammoniac hose with EPDM lining, for the discharge of water-free, liquid and gaseous ammonia.
Conforms to EN ISO 5771. Full electrostatic safety.
Burst pressure > 125 bar. Temperature range -40 °C up to +55 °C.
AMX (without helix) :
Pressure hose PN 25 for the handling of ammonia, for example during the production of fertiliser ( urea ), chemicals, paper pulp and ammonia water.
Available in sizes 13mm · 19mm · 25mm · 50mm
Sizes 19mm-50mm at your choice either with textile braid ( …PA ) or with stainless steel braid ( …SS )
EFL (Ω)
FLUORLINE’ universal hose, a highly flexible and comparably low-priced dispenser hose with seamless, transparent lining of THV fluorpolymer – suitable for most commonly used media. Non leaching, non discolouring, therefore ideal for highly pure and sensitive products. Conforms to EN 1360, EN 12115. Temperature range -40 °C up to +100 °C.
EFL 16 / EFL 21 (without helix):
Pressure hoses PN 16, for barrel pumps, AdBlue (DEF) urea refuelling, emission free car refuelling, connecting hose in plant engineering and for robot filling systems.
Available in size 16mm (no colour marking) and size 21mm (blue-white-blue colour marking).
SD ( Ω )
Steam hose with EPDM lining and zinc plated steel braids, for wet saturated steam up to 18 bar (210 °C) and hot water up to 120 °C. For cold water up to 25 bar.
Minimum burst pressure 180 bar (1:10 safety factor). Corresponds to EN ISO 6134 – 2A
SD (without helix):
Pressure hose PN 18 25 bar. Sizes 13mm · 19mm · 25mm · 32mm · 38mm · 50mm

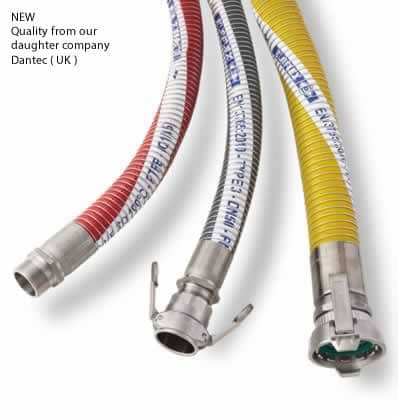

FWS PP | FWS PTFE.
Also available: Composite hoses with Polypropylene or PTFE lining. Multi-layer thermoplastic hose with internal and external helix. Suitable for the handling of a large number of industrial chemicals, in refineries, tank farms, for the loading and unloading of rail cars and tankers.
Flexible and low priced, but less lifespan than our premium EN 12115 rubber hoses. Available as complete and tested hose assembly.
Conforms to EN 13765. Pressure PN 14 bar.
Available in sizes 25mm · 38mm · 50mm · 63mm · 75mm · 100mm · 150mm · 200mm
Sizes 100mm, 150mm and 200mm also available as Heavy Duty type ( ‘-H’ ).
